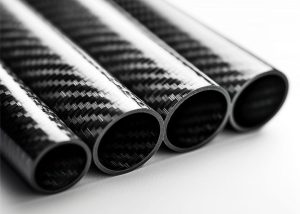

Round Carbon Fiber Tube Specification
Can’t find what you are looking for?
|
Carbon Fiber Tube Sizes Chart |
||
|
2.8*4 mm |
29.4*31 mm |
80*85mm |
|
3.0*5 mm |
30*32 mm |
86*88mm |
|
3.2*5 mm |
30.3*32 mm |
90*94mm |
|
3.6*5 mm |
31*33 mm |
97*100mm |
|
4.0*6 mm |
31.6*33 mm |
100*104mm |
|
5.0*7 mm |
32*34 mm |
104*110mm |
|
5.5*7 mm |
33*35 mm |
110*116mm |
|
6.0*8 mm |
33.8*35 mm |
116*120mm |
|
7.0*9 mm |
34*36 mm |
120*128mm |
|
7.2*9 mm |
35*37 mm |
128*130mm |
|
7.5*10 mm |
36*38 mm |
130*135mm |
|
8*10 mm |
37*39 mm |
137.6*140mm |
|
9* 10.7 mm |
37.2*39 mm |
140*146mm |
|
10*12 mm |
38*40 mm |
146*150mm |
|
10.7*12.7 mm |
39*41 mm |
165*167.6mm |
|
11*12.7 mm |
39.6*42 mm |
167.6*172mm |
|
12*14 mm |
40*42 mm |
184*187.5mm |
|
12.7*14 mm |
41*43 mm |
190*194mm |
|
13*14.2 mm |
42*44 mm |
240*249mm |
|
14*16 mm |
43*45 mm |
250*260mm |
|
14*16.3 mm |
44*46 mm |
260*275mm |
|
15*16.3 mm |
45*47 mm |
288*290mm |
|
16*18 mm |
46*48 mm |
290*295mm |
|
17*18.4 mm |
47*50 mm |
295*314mm |
|
18*20 mm |
48*50 mm |
397*400mm |
|
18.4*20 mm |
50*55.15 mm |
400*424mm |
|
19*21 mm |
55*57 mm |
505*514mm |
|
20*22 mm |
55.15*57 mm |
514*517mm |
|
20.5*22 mm |
56*60 mm |
 |
|
21*22.2 mm |
57*60 mm |
 |
|
22.2*24 mm |
60*68 mm |
 |
|
23.3*25 mm |
70*73 mm |
 |
|
24*26 mm |
73*75 mm |
 |
|
24*26.5 mm |
75*86 mm |
 |
|
25*27 mm |
85.5*87 mm |
 |
|
26.4*28 mm |
86*90 mm |
 |
|
26.8*28 mm |
87*90 mm |
 |
|
27*29 mm |
90*107 mm |
 |
|
28*30 mm |
107*110 mm |
 |
|
28.6*30 mm |
29*31 mm |
 |
|
Remark: 1. The ID Could fit any OD listed Above. 2. Length Max Could be 8.0 Meters 3. The List will be continue when we making new molds…….. |
||
Carbon Fiber Tube More Details
- Size: Any Size Make-to-Order
- Appearance: 1K, 3K, 6K, 12K, 24K carbon fiber fabric
- Shape.: Round, Square, Oval or per your request
- Process: Molding, Vacuum, handcraft, RTM and etc.
- Package- Just as your requirement.
- Thickness: 0.5mm-50mm
- Color: black or customized
- Length: 30~10000mm and customize are available
- Outer diameter: 4~1000mm, customize are available
- Tolerance: Can Reach ±0.03mm or customized
- Surface: Glossy/ Matte & Weave Pattern: Twill / Plain / UD
- Material: 100% Carbon Fiber, Not including any Glassfiber Mix Carbon.
OEM/ODM Service
OEM/ODM Service is available, According to the customer’s design, the drawing (PDF & DWG & DXF & STP & IGS Format) customized Carbon Fiber Parts for RC Helicopter, RC cars, UAV Drone frames, Carbon fiber tubes, and other carbon fiber products.
Good Price, Delivery Time, and Best Services for Pre-delivery inspection & After-sales
Pre-Sale consultation
- Timely delivery
- Offer testing report
After-sale service
- Immediate check of shipping status
- Guide on the use of products properly
Our Business Scope
- Sell quality design & fabrication Products worldwide
- R&D advanced Carbon Fiber Products for brand owner
- Manufacturer OEM carbon fiber products with high standards and high Modulus
- Provide rapid prototype service according to drawings
Production Range
Aviation Industry
- aircraft, plane main wing, empennage, and body, etc.
Marine
- skis, kayaks, paddles, oars, canoes, etc.
Sporting Goods
- Umbrella stands, tool handles, kites, bicycle frames, snowboards, skateboards, hockey and lacrosse shafts, golf clubs, etc
Aftermarket Car Parts
- auto engine, synchronizer, machine covers, spoilers, bumpers, trim, and so on.
Other Applications
- Leather goods, pens, notebooks, jewelry, furniture, faucets, various models, building reinforcing, watches, pens, bags, gears, blankets, rotor blades, etc.
